CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range

CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range
CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range

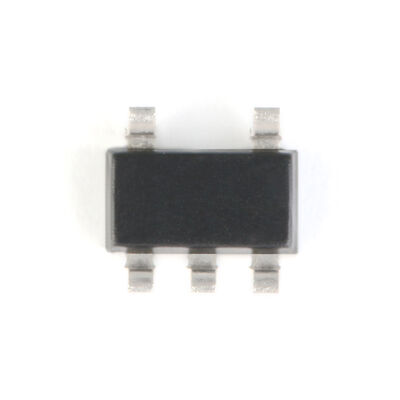

Large Image :  CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range

Product Details:
Place of Origin: CN
Brand Name: onsemi
Certification: rohs
Model Number: CAT24C02TDI-GT3A
Document: C146748_1516861574596130168...86.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range

Description
Operating Temperature: -40℃~+85℃ Product Catalog: EEPROM
Interface Type: I2C Storage Capadity: 2Kbit
Clock Frequency (fc): 400kHz Write Cycle Time (Tw): 5ms
Highlight:

CMOS Serial EEPROM 1.7V to 5.5V

,

EEPROM Chip with wide voltage range

,

CAT24C02TDI-GT3A Serial EEPROM

CAT24C02TDI-GT3A CMOS Serial EEPROM
1.7V to 5.5V Supply Voltage Range Serial EEPROM with I2C Interface
Key Features
  • Supports Standard and Fast I2C Protocol
  • 1.7V to 5.5V Supply Voltage Range
  • 16-Byte Page Write Buffer
  • Hardware Write Protection for Entire Memory
  • Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
  • Low Power CMOS Technology
  • More than 1,000,000 Program/Erase Cycles
  • 100 Year Data Retention
  • Industrial and Extended Temperature Range
  • Pb-Free, Halogen Free/BFR Free and RoHS Compliant
Product Variants
Device Order Number Model Package Type Temperature Range Lead Finish Shipping
CAT24C02WI−G24C02HSOIC−8IndustrialNiPdAuTube, 100 Units / Tube
CAT24C02WI−GA24C02HSOIC−8IndustrialNiPdAuTube, 100 Units / Tube
CAT24C02WI−GT324C02HSOIC−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02WI−GT3A24C02HSOIC−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02WE−GT324C02HSOIC−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02WE−GT3A24C02HSOIC−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02YI−GC02HTSSOP−8IndustrialNiPdAuTube, 100 Units / Tube
CAT24C02YI−GAC02HTSSOP−8IndustrialNiPdAuTube, 100 Units / Tube
CAT24C02YI−GT3C02HTSSOP−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02YI−GT3AC02HTSSOP−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02YE−GT3C02HTSSOP−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02YE−GT3AC02HTSSOP−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02VP2I−GT3*C1TTDFN−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02VP2IGT3A*C1TTDFN−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02VP2E−GT3*C1TTDFN−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02VP2EGT3A*C1TTDFN−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02ZI−GT3C1MSOP−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02ZE−GT3C1MSOP−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02ZI−GT3AC1MSOP−8IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02ZE−GT3AC1MSOP−8ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02TDI−GT3C1TSOT−23−5IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02TDE−GT3C1TSOT−23−5ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02TDI−GT3AC1TSOT−23−5IndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02TDE−GT3AC1TSOT−23−5ExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02LI−GA24C02HPDIP−8IndustrialNiPdAuTube, 50 Units / Tube
CAT24C02LE−GA24C02HPDIP−8ExtendedNiPdAuTube, 50 Units / Tube
CAT24C02HU4IGT3AC1UUDFN8−EPIndustrialNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02HU4EGT3AC1UUDFN8−EPExtendedNiPdAuTape & Reel, 3,000 Units / Reel
CAT24C02USI−T3TBDUS8IndustrialMatte−TinTape & Reel, 3,000 Units / Reel
CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range 0 CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range 1 CAT24C02TDI-GT3A CMOS Serial EEPROM 1.7 V To 5.5 V Supply Voltage Range 2
