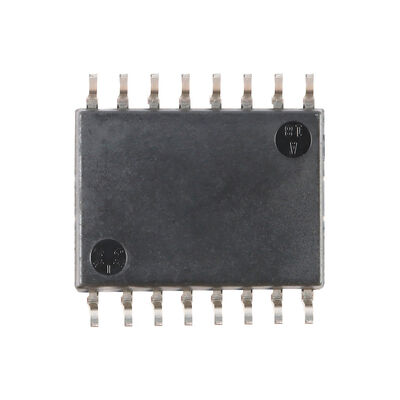

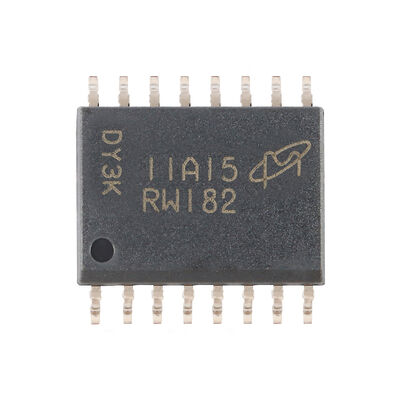

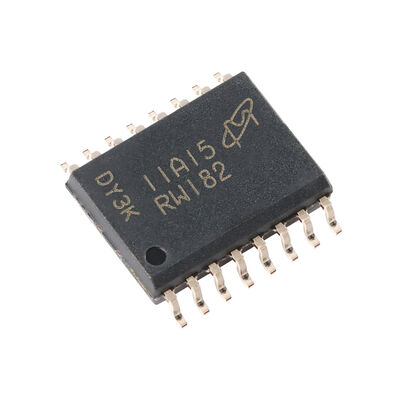

MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash

I'm Online Chat Now

MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash

MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash
MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash

Large Image :  MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash

Product Details:
Place of Origin: CN
Brand Name: micron
Certification: rohs
Model Number: MT25QL01GBBB8ESF-0SIT
Document: E744F4748479A8ACFF2D1CA594B...1F.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with

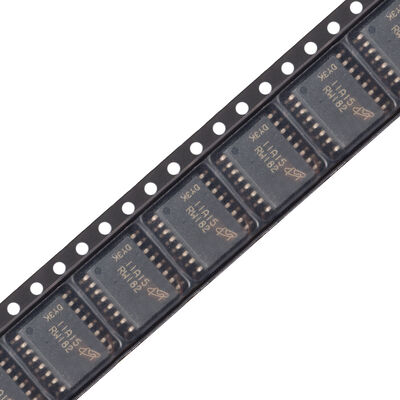

Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 1Gbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): Time (Tpp)

MT25QL01GBBB8ESF-0SIT 1Gb 3V Multi-I/O Serial Flash Memory NOR Flash
Features
  • Stacked device (two 512Mb die)
  • SPI-compatible serial bus interface
  • Single and double transfer rate (STR/DTR)
  • Clock frequency– 133 MHz (MAX) for all protocols in STR– 90 MHz (MAX) for all protocols in DTR
  • Dual/quad I/O commands for increased throughput up to 90 MB/s
  • Supported protocols: Extended, Dual and Quad I/Oboth STR and DTR
  • Execute-in-place (XIP)
  • PROGRAM/ERASE SUSPEND operations
  • Volatile and nonvolatile configuration settings
  • Software reset
  • Additional reset pin for selected part numbers
  • 3-byte and 4-byte address modes – enable memoryaccess beyond 128Mb
  • Dedicated 64-byte OTP area outside main memory– Readable and user-lockable
  • Erase capability– Die Erase– Sector erase 64KB uniform granularity– Subsector erase 4KB, 32KB granularity
  • Erase performance: 400KB/sec (64KB sector)
  • Erase performance: 80KB/sec (4KB sub-sector)
  • Program performance: 2MB/sec
  • Security and write protection– Volatile and nonvolatile locking and softwarewrite protection for each 64KB sector– Nonvolatile configuration locking– Password protection– Hardware write protection: nonvolatile bits(BP[3:0] and TB) define protected area size– Program/erase protection during power-up– CRC detects accidental changes to raw data
  • Electronic signature– JEDEC-standard 3-byte signature (BA21h)– Extended device ID: two additional bytes identifydevice factory options
  • JESD47H-compliant– Minimum 100,000 ERASE cycles per sector– Data retention: 20 years (TYP)
Options Marking
  • Voltage– 2.7–3.6V L
  • Density– 1Gb 01G
  • Device stacking– 2 die stacked B
  • Device generation B
  • Die revision B
  • Pin configuration– HOLD# 1– RESET and HOLD# 8
  • Sector Size– 64KB E
  • Packages – JEDEC-standard, RoHScompliant– 24-ball T-PBGA 05/6mm x 8mm(TBGA24)12– 16-pin SOP2, 300 mils (SO16W,SO16-Wide, SOIC-16)SF– W-PDFN-8 8mm x 6mm (MLP8 8mmx 6mm)W9
  • Security features– Standard security 0
  • Special options– Standard S– Automotive A
  • Operating temperature range– From –40°C to +85°C IT– From –40°C to +105°C AT– From –40°C to +125°C UT
Bit Name Settings Description Notes
Bit Name Settings Description Notes
7 Status registerwrite enable/disable 0 = Enabled (Default)
1 = Disabled
Nonvolatile control bit: Used with W# to enable or disable writing to the status register.
5 Top/bottom 0 = Top (Default)
1 = Bottom
Nonvolatile control bit: Determines whether the protected memory area defined by the block protect bits starts from the top or bottom of the memory array.
6, 4:2 BP[3:0] See Protected Area tables Nonvolatile control bit: Defines memory to be software protected against PROGRAM or ERASE operations.When one or more block protect bits is set to 1, a designated memory area is protected from PROGRAM and ERASE operations.
11 Write enable latch 0 = Clear (Default)
1 = Set
Volatile control bit: The device always powers up withthis bit cleared to prevent inadvertent WRITE, PROGRAM, or ERASE operations. To enable these operations, the WRITE ENABLE operation must be executed first to set this bit.
0 Write in progress 0 = Ready
1 = Busy
Status bit: Indicates if one of the following command cycles is in progress:WRITE STATUS REGISTERWRITE NONVOLATILE CONFIGURATION REGISTERPROGRAMERASE2
