W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

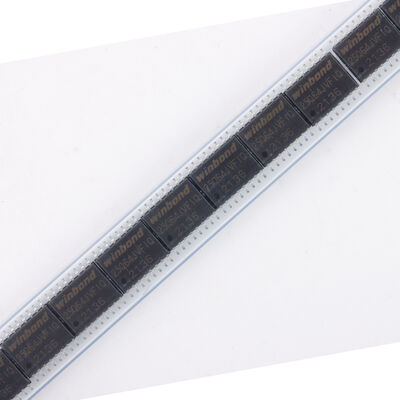

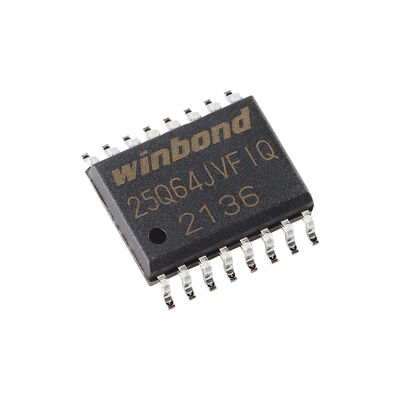

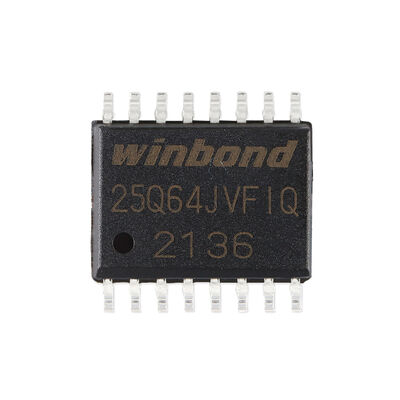

W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

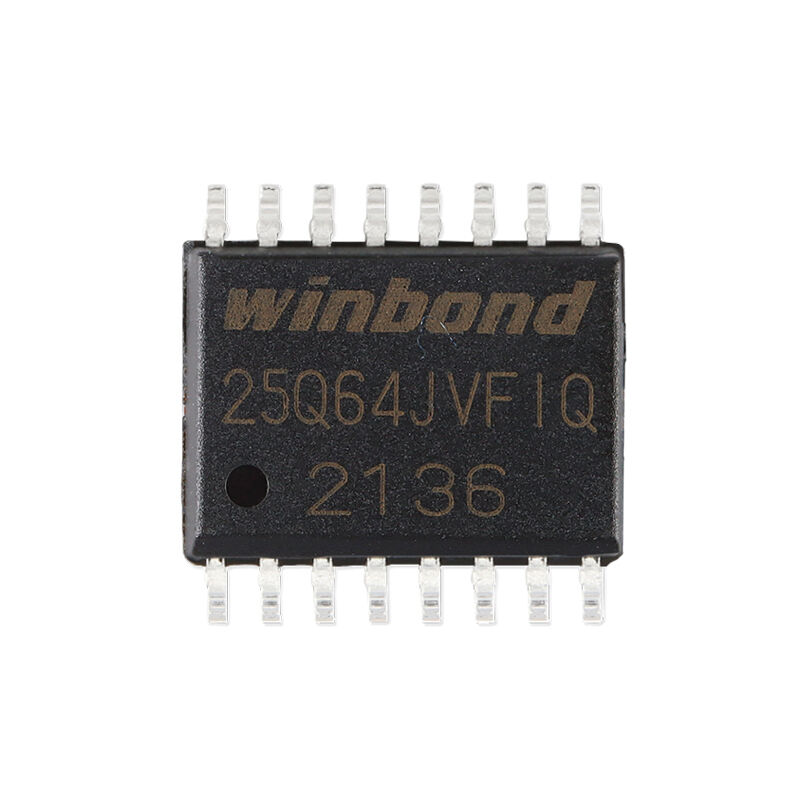

Large Image :  W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

Product Details:
Place of Origin: CN
Brand Name: Winbond
Certification: rohs
Model Number: W25Q64JVSFIQ
Document: C571260_35A2CBF0DA721D82950...E2.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: SPI Storage Capadity: 32Mbit
Clock Frequency (fc): 133MHz Page Write Time (Tpp): 3ms
Highlight:

3V NOR Flash memory

,

64M-bit serial Flash memory

,

Dual Quad SPI NOR Flash

W25Q64JVSFIQ NOR FLASH 3V 64M-Bit Serial Flash Memory with Dual/Quad SPI
High-performance 64M-bit serial flash memory supporting standard, dual, and quad SPI interfaces for versatile embedded applications.
Key Features
SpiFlash Memory Family
  • W25Q64JV: 64M-bit / 8M-byte capacity
  • Standard SPI: CLK, /CS, DI, DO
  • Dual SPI: CLK, /CS, IO0, IO1
  • Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
  • Software & Hardware Reset
High Performance Specifications
  • 133MHz Single, Dual/Quad SPI clocks
  • 266/532MHz equivalent Dual/Quad SPI performance
  • Minimum 100K Program-Erase cycles per sector
  • More than 20-year data retention
Power & Environmental Specifications
  • Single 2.7 to 3.6V supply voltage
  • <1µA Power-down (typical)
  • -40°C to +85°C operating range
  • -40°C to +105°C operating range option
Flexible Memory Architecture
  • 4KB sector organization
  • Uniform Sector/Block Erase (4K/32K/64K-Byte)
  • Program 1 to 256 bytes per programmable page
  • Erase/Program Suspend & Resume functionality
Pin Configuration
Pin No. Pin Name I/O Function
1 /HOLD or /RESET (IO3) I/O Hold or Reset Input (Data Input Output 3)
2 VCC Power Supply
3 /RESET I Reset Input
4 N/C No Connect
5 N/C No Connect
6 N/C No Connect
7 /CS I Chip Select Input
8 DO (IO1) I/O Data Output (Data Input Output 1)
9 /WP (IO2) I/O Write Protect Input (Data Input Output 2)
10 GND Ground
11 N/C No Connect
12 N/C No Connect
13 N/C No Connect
14 N/C No Connect
15 DI (IO0) I/O Data Input (Data Input Output 0)
16 CLK I Serial Clock Input
W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 0 W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 1 W25Q64JVSFIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
