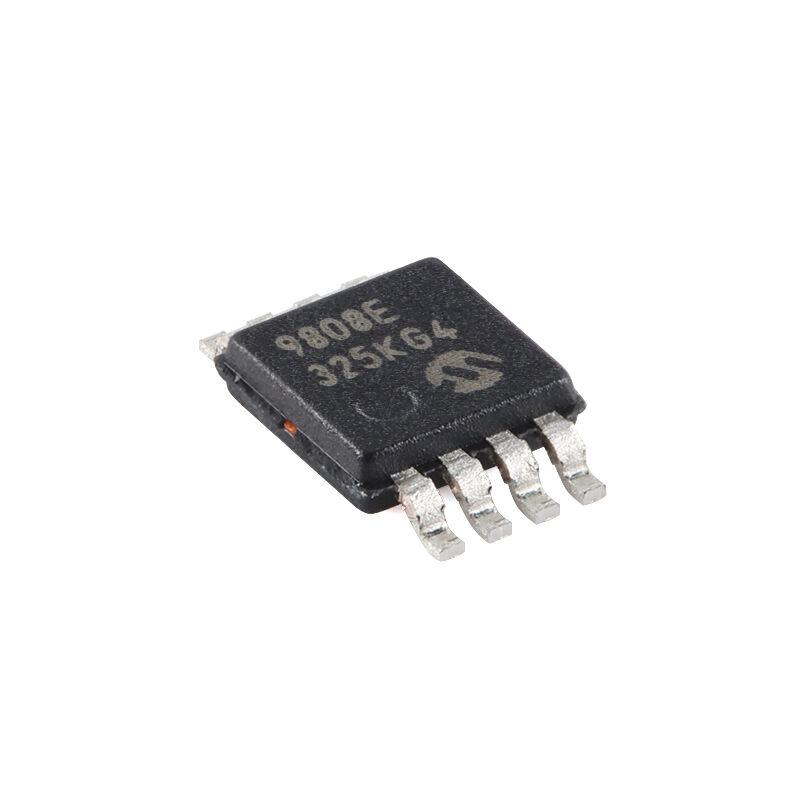

MCP9808T-E/MS ±0.5°C Maximum Accuracy Digital Temperature Sensor

Large Image : MCP9808T-E/MS ±0.5°C Maximum Accuracy Digital Temperature Sensor

Product Details:

Place of Origin:	CN
Brand Name:	MICROCHIP
Certification:	rohs
Model Number:	MCP9808T-E/MS
Document:	MCP9808-0.5C-Maximum-Accura...5B.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

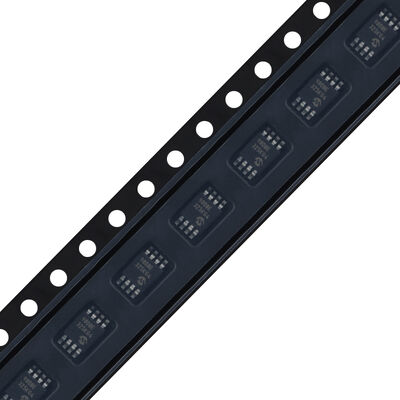

Packaging Details:	T/R
Delivery Time:	5-8day
Payment Terms:	T/T,Western Union
Supply Ability:	10000

Contact Now Chat Now

MCP9808T-E/MS ±0.5°C Maximum Accuracy Digital Temperature Sensor

Description

Operating Temperature Range (°C):	-40℃~+125℃	Interface Type:	I2C；SMBus
Operating Voltage:	2.8V~5.5V	Standby Current:	-
Temperature Conversion Time:	250ms	Temperature Resolution:	13bit
Highlight:	MCP9808T digital temperature sensor , high accuracy temperature sensor , digital sensor with warranty

MCP9808T-E/MS ±0.5°C Maximum Accuracy Digital Temperature Sensor

High-precision digital temperature sensor offering exceptional accuracy and programmable features for industrial and electronic applications.

Key Features

Accuracy:
- ±0.25°C (typical) from –40°C to +125°C
- ±0.5°C (maximum) from –20°C to 100°C
- ±1°C (maximum) from –40°C to +125°C
- ±0.0625°C or ±1 LSb (typical) repeatability
User-Selectable Measurement Resolution: +0.5°C, +0.25°C, +0.125°C, +0.0625°C
User-Programmable Temperature Limits: Temperature Window Limit and Critical Temperature Limit
User-Programmable Temperature Alert Output
Operating Voltage Range: 2.7V-5.5V
Operating Current: 200 μA (typical)
Shutdown Current: 0.1 μA (typical)
2-wire Interface: I2C/SMBus Compatible

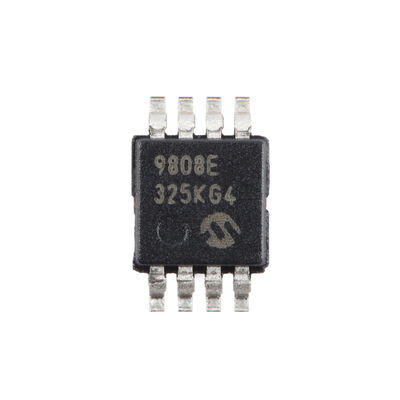

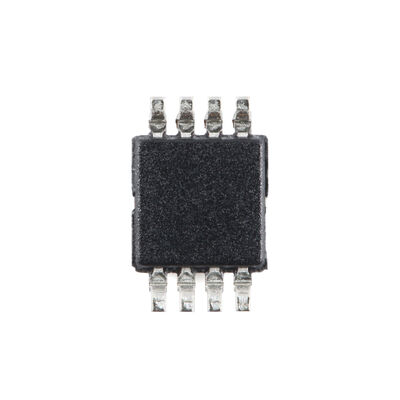

Available Packages: 2x3 DFN-8, MSOP-8

Typical Applications

General Purpose • Industrial Applications • Industrial Freezers and Refrigerators • Food Processing • Personal Computers and Servers • PC Peripherals • Consumer Electronics • Handheld/Portable Devices

Pin Function

DFN	MSOP	Symbol	Pin Function
1	1	SDA	Serial Data Line
2	2	SCL	Serial Clock Line
3	3	Alert	Temperature Alert Output
4	4	GND	Ground
5	5	A2	Slave Address
6	6	A1	Slave Address
7	7	A0	Slave Address
8	8	VDD	Power Pin
9	—	EP	Exposed Thermal Pad (EP); must be connected to GND

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
