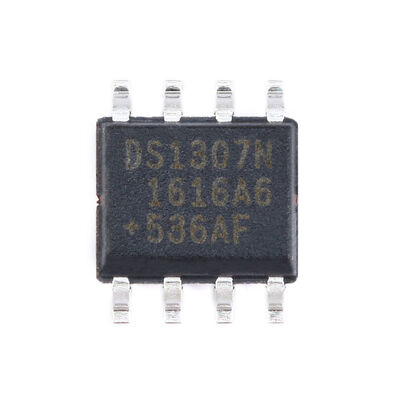

DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock

DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock
DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock

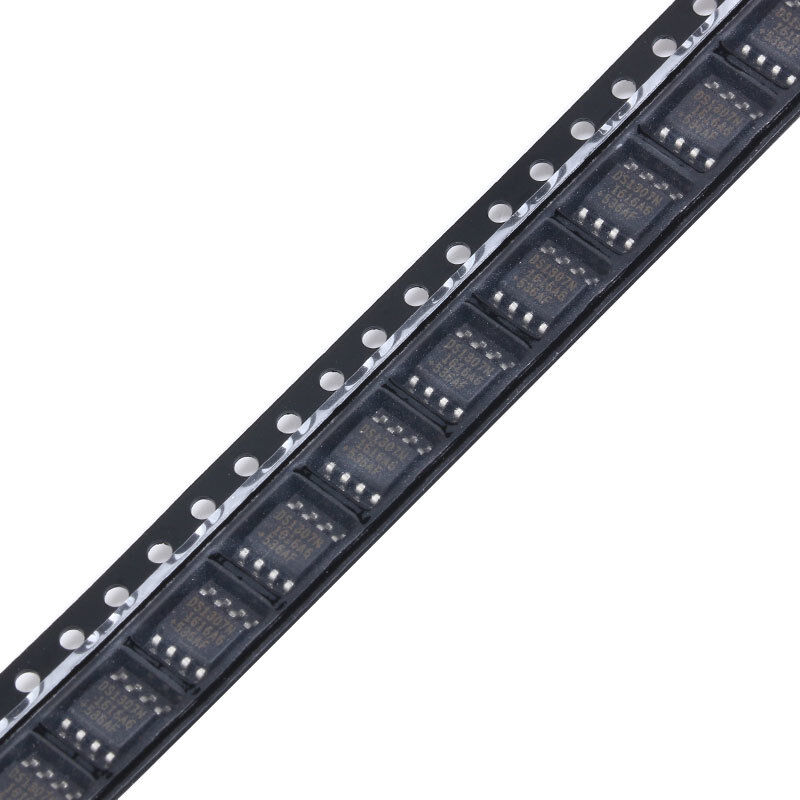

Large Image :  DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock

Product Details:
Place of Origin: CN
Brand Name: ADI
Certification: ROHS
Model Number: DS1307ZN+
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8day
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock

Description
Product Category:: Real Time Clock RTC Bus Interface:: I2C
Operating Temperature Range (°C): -40℃~+85℃ Supply Voltage (min) (V): 4.5
Supply Voltage (max) (V): 5.5 Operating Current: 1.5mA
Highlight:

DS1307ZN+ I2C real-time clock

,

64x8 serial RTC module

,

I2C clock with warranty

DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock
Product Overview

The DS1307ZN+ is a complete timekeeping solution designed for microcontroller-based systems, providing reliable real-time clock functionality with battery backup support.

Key Features
  • Complete timekeeping management with leap-year compensation valid up to 2100
  • 56-byte battery-backed general-purpose RAM with unlimited writes
  • Programmable square-wave output signal
  • I2C serial interface compatible with most microcontrollers
  • Low power operation: less than 500nA in battery backup mode
  • Automatic power management with power-fail detection
  • Compact 8-pin packaging options (DIP and SO)
  • Wide temperature range options including industrial grade (-40°C to +85°C)
  • UL Recognized safety certification
Product Variants
Part Temp Range Voltage (V) Pin-Package Top Mark*
DS1307+ 0°C to +70°C 5.0 8 PDIP (300 mils) DS1307
DS1307N+ -40°C to +85°C 5.0 8 PDIP (300 mils) DS1307N
DS1307Z+ 0°C to +70°C 5.0 8 SO (150 mils) DS1307
DS1307ZN+ -40°C to +85°C 5.0 8 SO (150 mils) DS1307N
DS1307Z+T&R 0°C to +70°C 5.0 8 SO (150 mils) Tape and Reel DS1307
DS1307ZN+T&R -40°C to +85°C 5.0 8 SO (150 mils) Tape and Reel DS1307N
Product Documentation
DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock 0 DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock 1 DS1307ZN+ 64 X 8 Serial I2C Real-Time Clock 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
