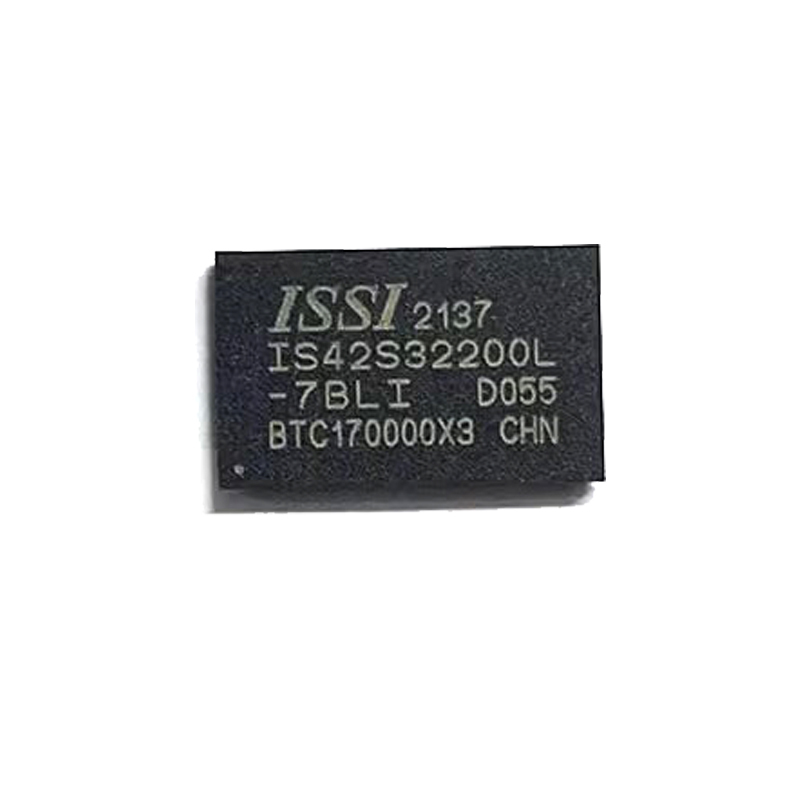

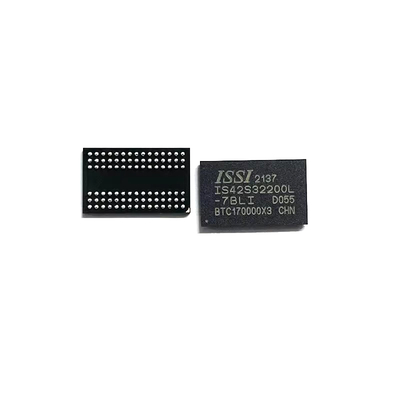

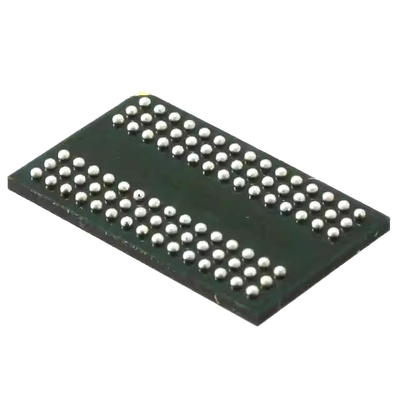

512K Bits Chip DRAM SYNCHRONOUS Dynamic RAM IS42S32200L-7BLI

Large Image : 512K Bits Chip DRAM SYNCHRONOUS Dynamic RAM IS42S32200L-7BLI

Product Details:

Place of Origin:	CN
Brand Name:	ISSI
Certification:	ROHS
Model Number:	IS42S32200L-7BLI
Document:	63DD5A49652FA2F720CC8FC0D52...48.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CONSULT WITH
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	100000

Contact Now Chat Now

512K Bits Chip DRAM SYNCHRONOUS Dynamic RAM IS42S32200L-7BLI

Description

Product Catalogue:	Memory > Dynamic Random Access Memory (DRAM)	Universal Packaging :	BGA
RoHS:	Compliance	Installation Method:	Surface Mount Installation
Operating Temperature:	-40℃(TA)-85℃(TA)	Length * Width * Height :	13mm*8mm
Application Grade:	Industrial Grade	Packaging Method:	Pallet
Highlight:	512K Bits chip dram , chip dram Sycnronous , IS42S32200L-7BLI

DYNAMIC Random Access Memory DRAM 512K Bits SYNCHRONOUS Dynamic RAM IS42S32200L-7BLI

Product Specifications

Attribute	Value
Product Catalogue	Memory > Dynamic Random Access Memory (DRAM)
Universal packaging	BGA
RoHS	Compliance
Installation method	Surface mount installation
Operating temperature	-40℃(TA)-85℃(TA)
Dimensions (L×W×H)	13mm × 8mm
Application grade	Industrial grade
Packaging method	Pallet
Minimum working voltage	3V
Organization	2Mx32
Data bus width	32bit
Interface type	Parallel
Storage capacity	64Mb (2M × 32)
Maximum supply current	90mA
Maximum working voltage	3.6V

Product Features

Clock frequency: 200, 166, 143, 133 MHz
Fully synchronous; all signals referenced to a positive clock edge
Internal bank for hiding row access/precharge
Single 3.3V power supply with LVTTL interface
Programmable burst length (1, 2, 4, 8, full page)
Programmable burst sequence: Sequential/Interleave
Self refresh modes with 4096 refresh cycles
Random column address every clock cycle
Programmable CAS latency (2, 3 clocks)
Burst read/write and burst read/single write operations capability

Package Options

86-pin TSOP-II
90-ball TF-BGA

Operating Temperature Ranges

Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Automotive Grade A1: -40°C to +85°C
Automotive Grade A2: -40°C to +105°C
