24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices

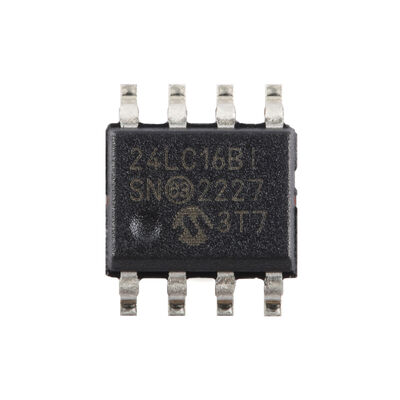

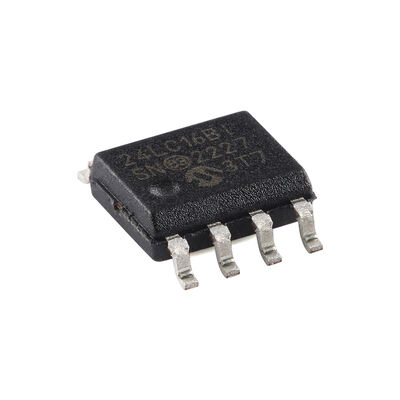

Large Image : 24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices

Product Details:

Place of Origin:	VN
Brand Name:	MICROCHIP
Certification:	rohs
Model Number:	24LC16BT-I/SN
Document:	C145578_1513063660603117769...95.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices

Description

Product Category::	EEPROM	Memory Size::	16 Kbit
Interface Type::	2-Wire, I2C	Maximum Clock Frequency::	400 KHz
Organization::	2 K X 8	Package / Case::	SOIC-8
Highlight:	24LC16BT-I/SN EEPROM chip with I²C interface , 16K serial EEPROM single supply , 1.7V low voltage EEPROM

24LC16BT-I/SN 16K I²C™ Serial EEPROM

16K I²C™ Serial EEPROM with single supply operation down to 1.7V for 24AA16 devices and 2.5V for 24LC16B devices.

Key Features

Single supply operation down to 1.7V (24AA16) and 2.5V (24LC16B)
Low-power CMOS technology: 1 mA active current, 1 μA standby current
2-wire serial interface, I2C™ compatible
Schmitt trigger inputs for noise suppression
Output slope control to eliminate ground bounce
100 kHz and 400 kHz clock compatibility
5 ms maximum page write time
Self-timed erase/write cycle
16-byte page write buffer
Hardware write-protect
ESD protection > 4,000V
Over 1 million erase/write cycles
Data retention > 200 years
Factory programming available
Pb-free and RoHS compliant
Temperature ranges: Industrial (-40°C to +85°C), Automotive (-40°C to +125°C)

Product Description

The Microchip Technology Inc. 24AA16/24LC16B (24XX16*) is a 16 Kbit Electrically Erasable PROM organized as eight blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA respectively. The device features page write capability for up to 16 bytes of data and is available in various package options.

Package Options

Available in 8-lead PDIP, SOIC, TSSOP, MSOP, DFN, TDFN, 5-lead SOT-23 and Chip Scale packages.

Pin Configuration

Name	PDIP	SOIC	TSSOP	DFN	TDFN	MSOP	SOT-23	CS	Description
A0	1	1	1	1	1	1	—	—	Not Connected
A1	2	2	2	2	2	2	—	—	Not Connected
A2	3	3	3	3	3	3	—	—	Not Connected
VSS	4	4	4	4	4	4	2	2	Ground
SDA	5	5	5	5	5	5	3	5	Serial Address/Data I/O
SCL	6	6	6	6	6	6	1	4	Serial Clock
WP	7	7	7	7	7	7	5	3	Write-Protect Input
VCC	8	8	8	8	8	8	4	1	+1.7V to 5.5V Power Supply

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
