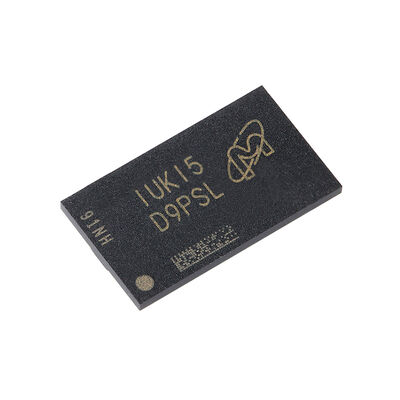

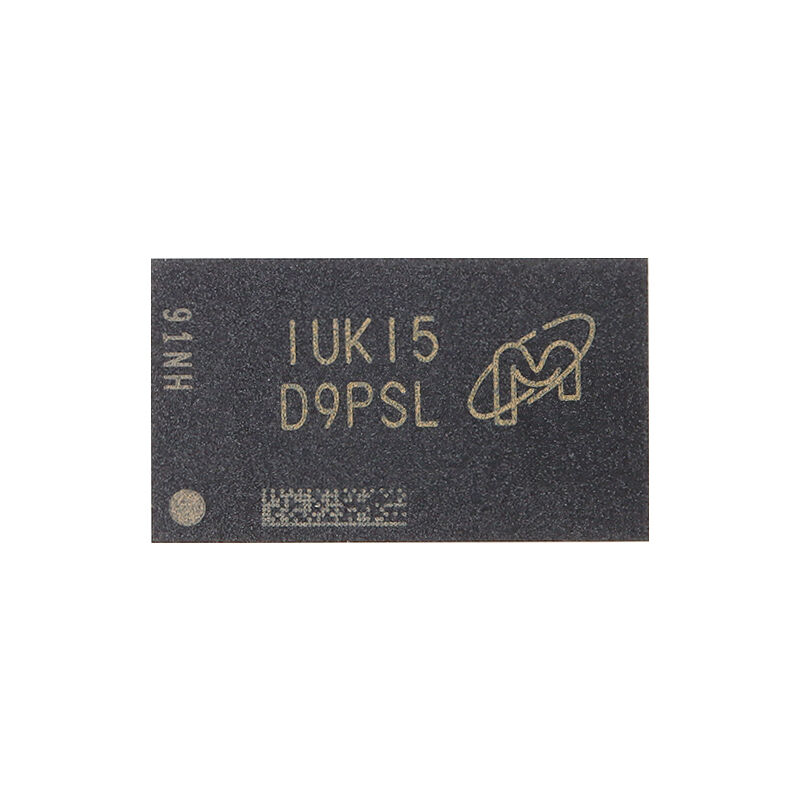

MT41J128M16JT-125:K 2Gb：X4 X8 X16 DDR3 SDRAM

Large Image : MT41J128M16JT-125:K 2Gb：X4 X8 X16 DDR3 SDRAM

Product Details:

Place of Origin:	CN
Brand Name:	micron
Certification:	rohs
Model Number:	MT41J128M16JT-125:K
Document:	C426885_AB3749E05F8EF1F5870...F4.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

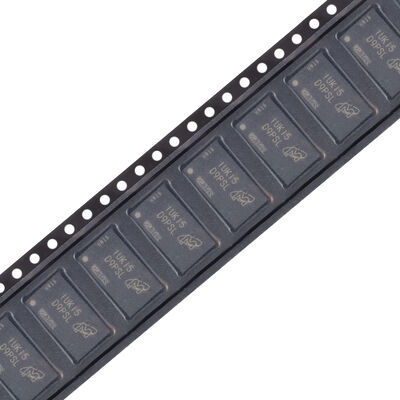

Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

MT41J128M16JT-125:K 2Gb：X4 X8 X16 DDR3 SDRAM

Description

Operating Temperature:	0℃~+95℃	Operating Voltage:	1.425V~1.575V
Memory Architecture (format):	DDR3 SDRAM	Storage Capadity:	2Gbit
Clock Frequency (fc):	800MHz	Operating Current:	49mA
Highlight:	2Gb DDR3 SDRAM memory chip , X4 X8 X16 DDR3 SDRAM , MT41J128M16JT-125K DRAM chip

MT41J128M16JT-125:K 2Gb DDR3 SDRAM

High-performance 2Gb DDR3 SDRAM available in X4, X8, and X16 configurations for industrial and manufacturing applications.

DDR3 SDRAM Configurations

MT41J512M4 – 64 Meg x 4 x 8 Banks

MT41J256M8 – 32 Meg x 8 x 8 Banks

MT41J128M16 – 16 Meg x 16 x 8 Banks

Key Features

VDD = VDDQ = 1.5V ±0.075V
1.5V center-terminated push/pull I/O
Differential bidirectional data strobe
8n-bit prefetch architecture
Differential clock inputs (CK, CK#)
8 internal banks
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Programmable CAS READ latency (CL)
Posted CAS additive latency (AL)
Programmable CAS WRITE latency (CWL) based on tCK
Fixed burst length (BL) of 8 and burst chop (BC) of 4 via mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Self refresh mode
Operating temperature: 0°C to 95°C
64ms, 8192 cycle refresh at 0°C to 85°C
32ms, 8192 cycle refresh at 85°C to 95°C
Self refresh temperature (SRT)
Automatic self refresh (ASR)
Write leveling
Multipurpose register
Output driver calibration

Technical Specifications

Parameter	512 Meg x 4	256 Meg x 8	128 Meg x 16
Configuration	64 Meg x 4 x 8 banks	32 Meg x 8 x 8 banks	16 Meg x 16 x 8 banks
Refresh count	8K	8K	8K
Row addressing	32K (A[14:0])	32K (A[14:0])	16K (A[13:0])
Bank addressing	8 (BA[2:0])	8 (BA[2:0])	8 (BA[2:0])
Column addressing	2K (A[11, 9:0])	1K (A[9:0])	1K (A[9:0])
Page size	1KB	1KB	2KB

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
