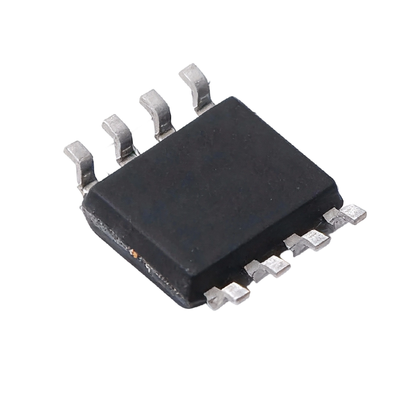

1Gbit 128M x 8 SPI NOR Flash Memory Chip with 2.7V to 3.6V Operating Voltage

Large Image : 1Gbit 128M x 8 SPI NOR Flash Memory Chip with 2.7V to 3.6V Operating Voltage

Product Details:

Place of Origin:	CN
Brand Name:	PUYA
Certification:	ROHS
Model Number:	P25Q32SH-SSH-IT
Document:	C2833294_EF1380479725232C1A...22.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult
Packaging Details:	T/R
Delivery Time:	5-8DAY
Payment Terms:	Western Union,T/T
Supply Ability:	10000

Contact Now Chat Now

1Gbit 128M x 8 SPI NOR Flash Memory Chip with 2.7V to 3.6V Operating Voltage

Description

Memory Type:	Non-Volatile	Supply Voltage:	2.7V To 3.6V
Storage Capacity:	1Gbit	Organization:	128M X 8
Category:	Memory	Erase Time:	1.5ms
Full Voltage Range:	2.7~3.6V	Data Retention:	20 Years
Dual Sp:	SCLK	Memory Format:	FLASH
Part Status:	Active
Highlight:	1Gbit SPI NOR Flash , 128M x 8 NOR Flash Chip , 2.7V to 3.6V Serial Peripheral Interface Flash

P25Q32SH-SSH-IT Serial Peripheral Interface (SPI) non-volatile NOR flash memory chip

1 Introduction

PUYA P25Q32SH Flash is a feature rich and cost-optimized serial peripheral interface (SPI) non-volatile NOR flash family. This application note provides conversion guidelines for migrating from the P25Q32H to the P25Q32SH Flash.

This application note is based on information available to date from datasheets and other application notes publicly available from PUYA. Please refer also to the latest relevant specifications. The document discusses the specification differences when migrating from P25Q32H to P25Q32SH.

2 Feature Comparison and Differences

PUYA P25Q32H products are well suited for migration to PUYA P25Q32SH products. Some of the reasons are compatible pinouts, packages, command set, and 4KB sector structure. Both P25Q32H and P25Q32SH devices support Single (Standard) I/O, Dual I/O, and Quad I/O modes. The main differences between P25Q32H and P25Q32SH are listed in the table below:

Table 2-1. High Level Feature Support Comparison

Feature / Parameter	P25Q32H	P25Q32SH
Supple Voltage	2.3V-3.6V	2.3V-3.6V
Single (Standard) IO Operations	√	√
Dual IO Operations	√	√
Quad IO Operations	√	√
QPI	√	√
DTR	not support	√
Standard Normal Read SCK Frequency (max)	55 MHz	55 MHz
Standard Fast Read SCK Frequency (max)	104 MHz	120 MHz
Dual Fast Read SCK Frequency (max)	104 MHz	120 MHz
Quad Fast Read SCK Frequency (max)	104 MHz	120 MHz
DTR Read SCK Frequency (max)	not support	66 MHz
Software Protection	√	√
Individual Block Protection	√	√
One Time Programmable Region(s)	3 x 1024 Bytes	3 x 1024 Bytes
Buffer access	not support	√
Erase(PE,SE,BE) time	Typ. 10ms	16ms
Erase(CE) time	Typ. 10ms	96ms
Temperature Range Option	-40C to +85C	-40C to +85C

Table 2-1-1 Pin Descriptions

No.	Symbol	Extension	Remarks
1	CS#	-	Chip select
2	SO	SIO1	Serial data output for 1 x I/O Serial data input and output for 4 x I/O read mode
3	WP#	SIO2	Write protection active low Serial data input and output for 4 x I/O read mode
4	GND	-	Ground of the device
5	SI	SIO0	Serial data input for 1x I/O Serial data input and output for 4 x I/O read mode
6	SCLK	-	Serial interface clock input
7	HOLD#	SIO3	To pause the device without deselecting the device Serial data input and output for 4 x I/O read mode
8	Vcc	-	Power supply of the device
