GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V

Large Image : GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V

Product Details:

Place of Origin:	CN
Brand Name:	GigaDevice
Certification:	rohs
Model Number:	GD25Q256EYIGR
Document:	59704EC0BBDC083E3250AF1408E...95.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with
Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V

Description

Operating Temperature:	-40℃~+85℃	Operating Voltage:	2.7V~3.6V
Interface Type:	SPI	Storage Capadity:	256Mbit
Clock Frequency (fc):	133MHz	Page Write Time (Tpp):	250us
Highlight:	3.3V NOR Flash memory , Dual Quad Serial Flash , Uniform Sector Flash 250us

GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V

Product Overview

The GD25Q256EYIGR is a high-performance 256M-bit Serial Flash memory featuring uniform sector architecture and support for Standard, Dual, and Quad SPI interfaces. Operating at 2.7V-3.6V with fast program/erase speeds, this device is ideal for demanding embedded applications.

Key Features

256M-bit Serial Flash - 32M-Byte capacity with 256 bytes per programmable page
Multiple SPI Interfaces - Standard, Dual, and Quad SPI support with 3 or 4-Byte Address Mode
High-Speed Performance - 133MHz clock frequency with data transfer up to 532Mbits/s in Quad mode
Comprehensive Write Protection - Software/hardware protection for all or portion of memory
Fast Program/Erase - 0.25ms page program time and 30ms sector erase time typical
Flexible Architecture - Uniform 4K-Byte sectors and 32/64K-Byte blocks
Low Power Consumption - 16μA standby current and 1μA deep power down current
Advanced Security - 128-bit Unique ID, SFDP register, and security registers with OTP locks
High Reliability - 100,000 program/erase cycles minimum with 20-year data retention

Pin Configuration

Pin No.	Pin Name	I/O	Description
1	HOLD# (IO3)	I/O	Hold Input (Data Input Output 3)
2	VCC	Power Supply
3	RESET#	I	Reset Input
7	CS#	I	Chip Select Input
8	SO (IO1)	I/O	Data Output (Data Input Output 1)
9	WP# (IO2)	I/O	Write Protect Input (Data Input Output 2)
10	VSS	Ground
13	DNU		Do Not Use (It may connect to internal signal inside)
15	SI (IO0)	I/O	Data Input (Data Input Output 0)
16	SCLK	I	Serial Clock Input

Product Images

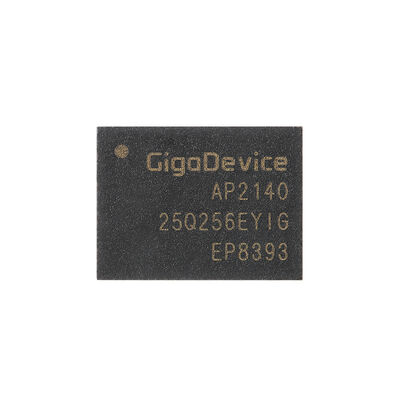

GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 2
<img alt=

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
