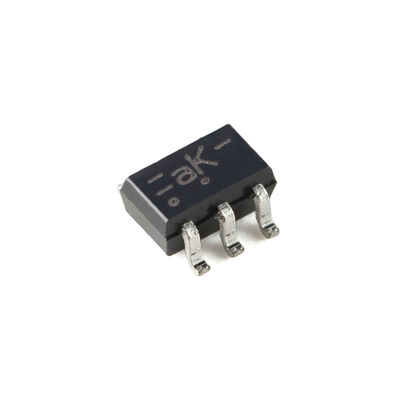

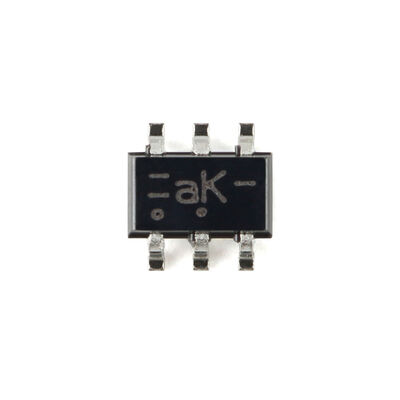

74AUP1G58GW,125 Low-power Configurable Multiple Function Gate

74AUP1G58GW,125 Low-power Configurable Multiple Function Gate
74AUP1G58GW,125 Low-power Configurable Multiple Function Gate 74AUP1G58GW,125 Low-power Configurable Multiple Function Gate 74AUP1G58GW,125 Low-power Configurable Multiple Function Gate 74AUP1G58GW,125 Low-power Configurable Multiple Function Gate

Large Image :  74AUP1G58GW,125 Low-power Configurable Multiple Function Gate

Product Details:
Place of Origin: CN
Brand Name: Nexperia
Certification: ROHS
Model Number: 74AUP1G58GW,125
Document: 74AUP1G58-406dd4965b32530fa...0a.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

74AUP1G58GW,125 Low-power Configurable Multiple Function Gate

Description
Description: Configurable Gate; Schmitt Trigger VCC (V): 0.8 - 3.6
Logic Switching Levels: CMOS Output Drive Capability (mA): ± 1.9
Tpd (ns): 8.7 Fmax (MHz): 70
Highlight:

74AUP1G58GW configurable function gate

,

low-power multiple function gate

,

ADC DAC configurable logic gate

74AUP1G58GW,125 Low-power Configurable Multiple Function Gate
Advanced low-power configurable multiple function gate designed for high-performance digital applications.
Key Features
  • Wide supply voltage range from 0.8 V to 3.6 V
  • CMOS low power dissipation
  • High noise immunity
  • Low static power consumption: ICC = 0.9 μA (maximum)
  • Latch-up performance exceeds 100 mA per JESD 78 Class II
  • Overvoltage tolerant inputs to 3.6 V
  • Low noise overshoot and undershoot < 10% of VCC
  • IOFF circuitry provides partial power-down mode operation
  • ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
  • Multiple package options available
  • Operating temperature range: -40 °C to +85 °C and -40 °C to +125 °C
Product Variants
Type Number Temperature Range Package Description Version/SOT
74AUP1G58GW -40 °C to +125 °C TSSOP6 plastic thin shrink small outline package; 6 leads; body width 1.25 mm SOT363-2
74AUP1G58GM -40 °C to +125 °C XSON6 plastic extremely thin small outline package; no leads; 6 terminals; body 1 × 1.45 × 0.5 mm SOT886
74AUP1G58GN -40 °C to +125 °C XSON6 extremely thin small outline package; no leads; 6 terminals; body 0.9 × 1.0 × 0.35 mm SOT1115
74AUP1G58GS -40 °C to +125 °C XSON6 extremely thin small outline package; no leads; 6 terminals; body 1.0 × 1.0 × 0.35 mm SOT1202
74AUP1G58GX -40 °C to +125 °C X2SON6 plastic thermal enhanced extremely thin small outline package; no leads; 6 terminals; body 1.0 × 0.8 × 0.32 mm SOT1255-2
74AUP1G58GW,125 Low-power Configurable Multiple Function Gate 0 74AUP1G58GW,125 Low-power Configurable Multiple Function Gate 1 74AUP1G58GW,125 Low-power Configurable Multiple Function Gate 2
