PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology

PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology
PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology

Large Image :  PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: PIC18F4520-I/PT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology

Description
Product Category:: MCU Max Speed (MHz): 40MHz
Data Bus Width:: 8 Bit Program Memory Size:: 32KB
Data RAM Size:: 1.5KB Operating Voltage: 4.2V~5.5V
Number Of I/Os:: 36
Highlight:

PIC18F4520 microcontroller with XLP technology

,

28-pin enhanced flash microcontroller

,

10-bit A/D microcontroller with low power

PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With 10-Bit A/D And Extreme Low Power (XLP) Technology
Product Overview

Enhanced Flash Microcontrollers featuring 10-Bit A/D conversion and Extreme Low Power (XLP) Technology, designed for optimal performance in power-sensitive applications.

Special Microcontroller Features
  • C Compiler Optimized Architecture
  • Optional extended instruction set designed to optimize re-entrant code
  • 100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical
  • 1,000,000 Erase/Write Cycle Data EEPROM Memory Typical
  • Flash/Data EEPROM Retention: 100 Years Typical
  • Self-Programmable under Software Control
  • Priority Levels for Interrupts
  • 8 x 8 Single-Cycle Hardware Multiplier
  • Extended Watchdog Timer (WDT): Programmable period from 4 ms to 131s
  • Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins
  • In-Circuit Debug (ICD) via Two Pins
  • Wide Operating Voltage Range: 2.0V to 5.5V
  • Programmable Brown-out Reset (BOR) with Software Enable Option
Product Models Comparison
Model Flash (K) Flash (Bytes) RAM EEPROM Pins A/D Timers CCP PWM SPI I2C UART
PIC18F2420 16K 8192 768 256 25 10 2/0 Y Y 1 2 1/3
PIC18F2520 32K 16384 1536 256 25 10 2/0 Y Y 1 2 1/3
PIC18F4420 16K 8192 768 256 36 13 1/1 Y Y 1 2 1/3
PIC18F4520 32K 16384 1536 256 36 13 1/1 Y Y 1 2 1/3

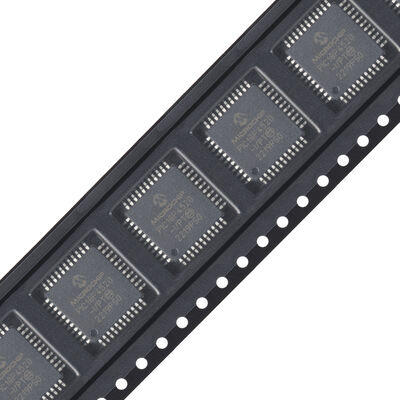

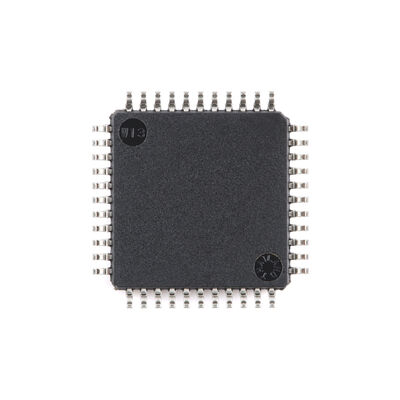

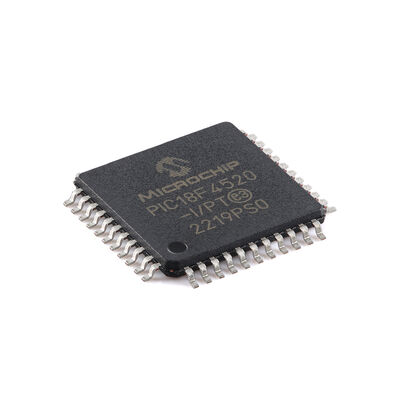

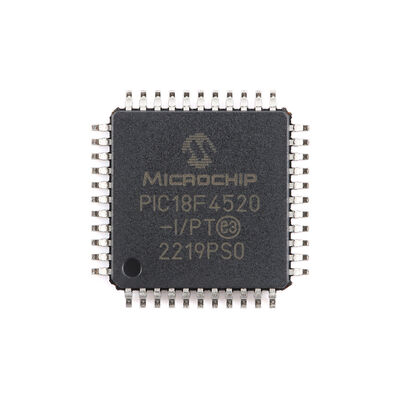

Product Images
PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology 0 PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology 1 PIC18F4520-I/PT 28/40/44-Pin Enhanced Flash Microcontrollers With10-Bit A/D And EXtreme Low Power (XLP) Technology 2
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
