2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI

I'm Online Chat Now

2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI

2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI
2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI 2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI 2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI

Large Image :  2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI

Product Details:
Place of Origin: TWN
Brand Name: Infineon
Certification: ROHS
Model Number: CY7C1011DV33-10ZSXI
Document: 9479AFB421709E466433D4AAEF7...3D.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: T/T,Western Union
Supply Ability: 10000
Contact Now Chat Now

2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI

Description
Manufacturer:: Infineon Product Category:: SRAM
Memory Size:: 2 Mbit Organization:: 128 K X 16
Package / Case:: TSOP-44 Moisture Sensitive:: Yes
Series:: CY7C1011DV33 Factory Pack Quantity:: 675
Highlight:

2Mbit sram memory chips

,

10ns sram memory chips

,

CY7C1011DV33-10ZSXI

SRAM 2Mbit Static RAM High-performance COMS Static Random Access Memory CY7C1011DV33-10ZSXI
Product Specifications
Attribute Value
Manufacturer Infineon
Product Category SRAM
Memory Size 2 Mbit
Organization 128 k x 16
Package / Case TSOP-44
Moisture Sensitive Yes
Series CY7C1011DV33
Factory Pack Quantity 675
Key Features
  • Pin and function compatible with CY7C1010CV33
  • High speed: tAA = 10 ns
  • Low active power: ICC = 90 mA at 10 ns
  • Low CMOS standby power: ISB2 = 10 mA
  • 2.0 V data retention
  • Automatic power down when deselected
  • TTL-compatible inputs and outputs
  • Easy memory expansion with CE and OE features
  • Available in Pb-free 36-pin SOJ and 44-pin TSOP II packages
Functional Description

The CY7C1010DV33 is a high performance CMOS Static RAM organized as 256 K words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers.

Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A17).

Reading from the device is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing Write Enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.

Technical Specifications
Access Time 10 ns
Interface Type Parallel
Supply Voltage Range 3 V to 3.6 V
Operating Temperature -40°C to +85°C
Mounting Style SMD/SMT
Product Images

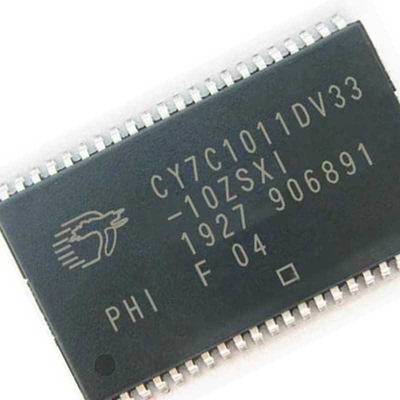

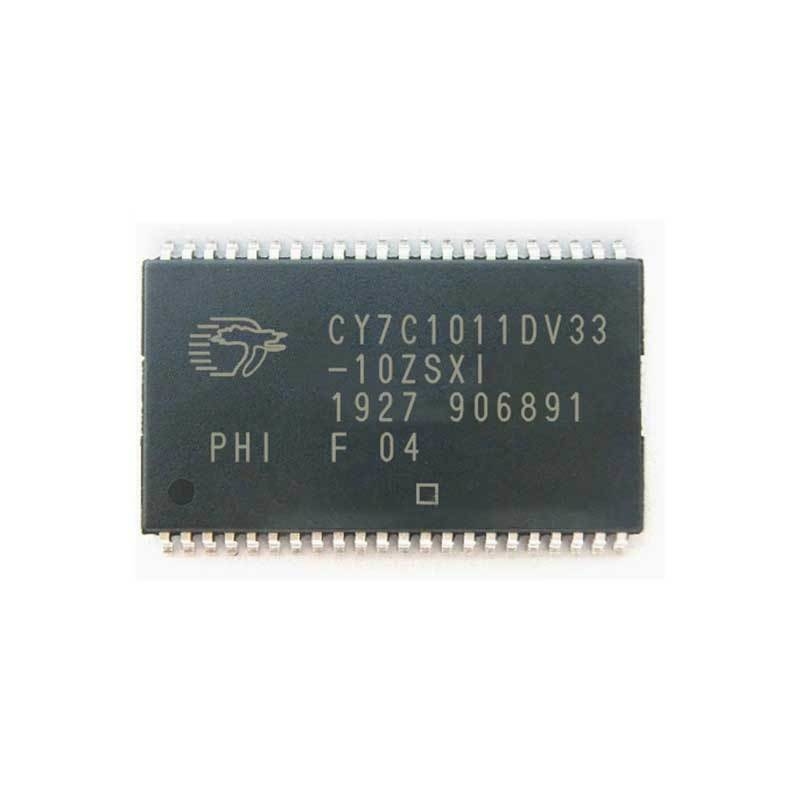

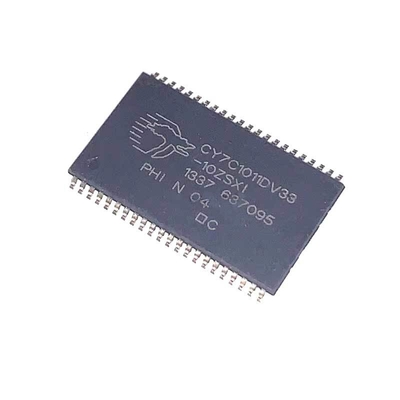

2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI 0 2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI 1 2Mbit 10ns Sram Memory Chips 128 K X 16 CY7C1011DV33-10ZSXI 2
Packaging and Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent requests, please contact us directly via email or phone.

What is your delivery time?

Delivery times vary based on order quantity and season. Small batches typically ship within 7-15 days, while larger orders may require approximately 30 days.

What are your payment terms?

Standard terms: 30% deposit with 70% balance paid via T/T before shipment.

What are the shipping options?

We offer sea, air, and express shipping (including EMS, UPS, DHL, TNT, and FEDEX). Please confirm your preferred method before ordering.
