6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output

6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output
6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output 6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output 6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output

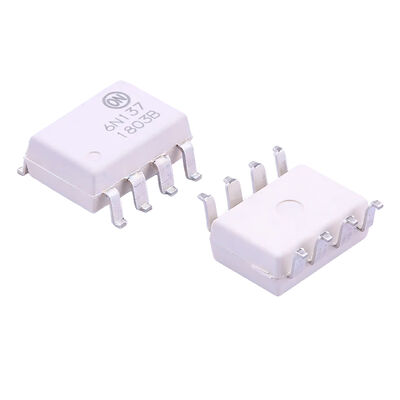

Large Image :  6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output

Product Details:
Place of Origin: CN
Brand Name: onsemi
Certification: rohs
Model Number: 6N137SDM
Document: C15825_1501836290736866339.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Supply Ability: 100000
Contact Now Chat Now

6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output

Description
Mounting Style:: SMD/SMT Package / Case:: SMT-8
Number Of Channels:: 1 Channel Data Rate:: 10 Mb/s
Isolation Voltage:: 2500 Vrms Output Type:: Open Collector
Highlight:

10 Mb/s Data Rate Optocoupler

,

2500 Vrms Isolation Voltage High Speed Optocoupler

,

Open Collector Output Logic Gate Optocoupler

6N137SDM High Speed Optocouplers 8 PW DIP HIGH SPEED LOGIC GATE OPTOCOUP
Features
  • Very High Speed – 10 MBit/s
  • Superior CMR – 10 kV/µs
  • Fan-out of 8 Over -40°C to +85°C
  • Logic Gate Output
  • Strobable Output
  • Wired OR-open Collector
  • Safety and Regulatory Approvals– UL1577, 5,000 VACRMS for 1 Minute– DIN EN/IEC60747-5-5
Applications
  • Ground Loop Elimination
  • LSTTL to TTL, LSTTL or 5 V CMOS
  • Line Receiver, Data Transmission
  • Data Multiplexing
  • Switching Power Supplies
  • Pulse Transformer Replacement
  • Computer-peripheral Interface
Technical Parameters
Symbol Parameter Value Unit
VPR Input-to-Output Test Voltage, Method A, VIORM x 1.6 = VPR,Type and Sample Test with tm = 10 s, Partial Discharge < 5 pC 1,335 Vpeak

Input-to-Output Test Voltage, Method B, VIORM x 1.875 = VPR,100% Production Test with tm = 1 s, Partial Discharge < 5 pC 1,669 Vpeak
VIORM Maximum Working Insulation Voltage 890 Vpeak
VIOTM Highest Allowable Over-Voltage 6,000 Vpeak

External Creepage ≥ 8.0 mm

External Clearance ≥ 7.4 mm

External Clearance (for Option TV, 0.4" Lead Spacing) ≥ 10.16 mm
DTI Distance Through Insulation (Insulation Thickness) ≥ 0.5 mm
TS Case Temperature(2) 150 °C
IS,INPUT Input Current(2) 200 mA
PS,OUTPUT Output Power (Duty Factor ≤ 2.7%)(2) 300 mW
RIO Insulation Resistance at TS, VIO = 500 V(2) > 109 Ω

6N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output 06N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output 16N137SDM High Speed Optocoupler with 10 Mb/s Data Rate 2500 Vrms Isolation Voltage and Open Collector Output 2
