MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability

MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability
MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability

Large Image :  MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability

Product Details:
Place of Origin: CN
Brand Name: micron
Certification: rohs
Model Number: MT29F1G08ABAEAWP-IT:E
Document: DB4E5E94D8E9A8F249785434F20...FD.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability

Description
Operating Temperature: -40℃~+85℃ Operating Voltage: 2.7V~3.6V
Interface Type: Parallel Storage Capadity: 1Gbit
Clock Frequency (fc): - Page Write Time (Tpp): 200us
Highlight:

1Gb NAND Flash Memory

,

NAND Flash Memory high reliability

,

NAND Flash single-programming operation

MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory
High-reliability 1Gb NAND Flash Memory supporting single-programming operation with excellent data retention capability.
Product Overview
MT29F1G08ABAEAWP-IT:E 8Gb NAND Flash Memory supports single-programming operation with high reliability and data retention capability. Compatible models include: MT29F1G08ABAEAH4, MT29F1G08ABBEAH4, MT29F1G16ABBEAH4, MT29F1G08ABBEAHC, MT29F1G16ABBEAHC.
Key Features
  • Open NAND Flash Interface (ONFI) 1.0-compliant
  • Single-level cell (SLC) technology
  • Advanced command set including program page cache mode and read page cache mode
  • One-time programmable (OTP) mode
  • Two-plane commands and internal data move operations
  • Quality and reliability: Data retention compliant with JESD47 standards
  • Endurance: 100,000 PROGRAM/ERASE cycles
Memory Organization
  • Page size x8: 2112 bytes (2048 + 64 bytes)
  • Page size x16: 1056 words (1024 + 32 words)
  • Block size: 64 pages (128K + 4K bytes)
  • Plane size: 2 planes x 512 blocks per plane
  • Device size: 1Gb: 1024 blocks
Performance Specifications
  • Asynchronous I/O performance: tRC/tWC: 20ns (3.3V), 25ns (1.8V)
  • Array performance: Read page: 25µs, Program page: 200µs (TYP), Erase block: 700µs (TYP)
Operating Conditions
  • Operating Voltage Range: VCC: 2.7-3.6V or 1.7-1.95V
  • Operating temperature: Commercial (CT): -0ºC to +70ºC, Industrial (IT): -40ºC to +85ºC
  • Package: 48-pin TSOP Type 1, CPL2
Cycle I/O Configuration
Cycle I/O7 I/O6 I/O5 I/O4 I/O3 I/O2 I/O1 I/O0
Second LOW LOW LOW LOW CA111 CA10 CA9 CA8
Third BA7 BA63 PA5 PA4 PA3 PA2 PA1 PA0
Fourth BA15 BA14 BA13 BA12 BA11 BA10 BA9 BA8

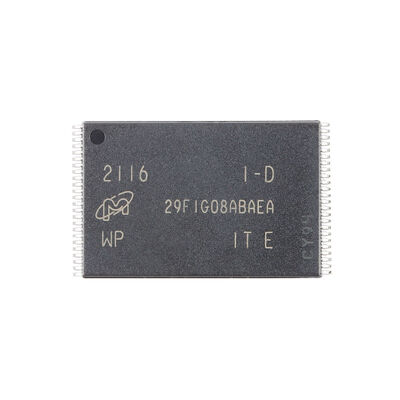

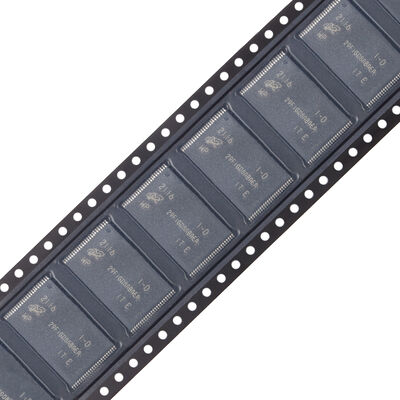

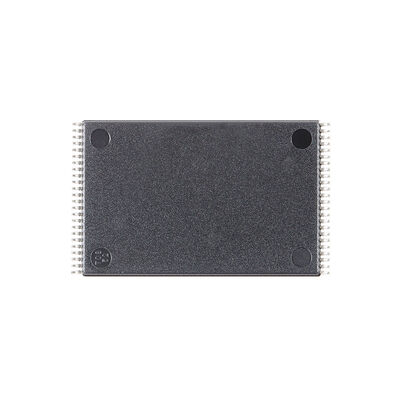

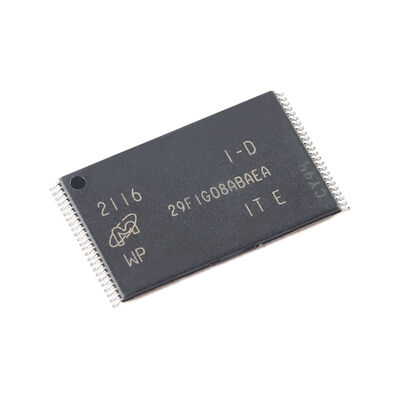

Product Images
MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability 0 MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability 1 MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability 2 MT29F1G08ABAEAWP-IT:E 1Gb NAND Flash Memory Supports Single-programming Operation With High Reliability And Data Retention Capability 3
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
