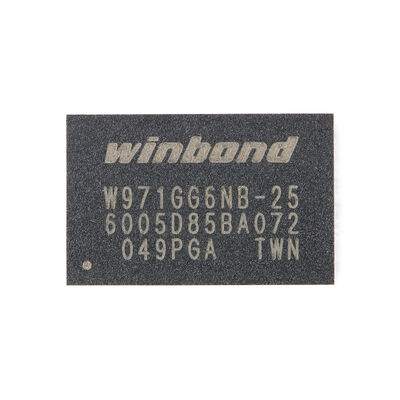

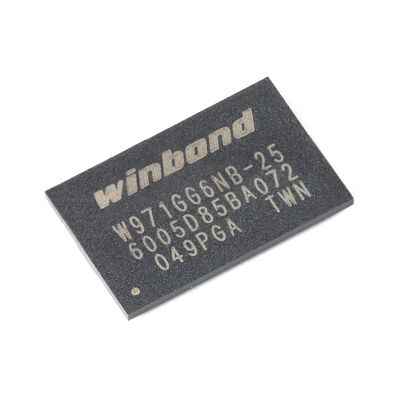

W971GG6NB-25 8M 8BANKS 16BIT 1G Bits DDR2 SDRAM Two Data Transfers Per Clock Cycle

बड़ी छवि : W971GG6NB-25 8M 8BANKS 16BIT 1G Bits DDR2 SDRAM Two Data Transfers Per Clock Cycle

उत्पाद विवरण:

उत्पत्ति के प्लेस:	सीएन
ब्रांड नाम:	Winbond
प्रमाणन:	rohs
मॉडल संख्या:	W971GG6NB-25
दस्तावेज:	C2826924_1A1126330118ED40FB...9D.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	consult with
पैकेजिंग विवरण:	टी/आर
प्रसव के समय:	5-8 दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता:	100000

संपर्क करें अब बात करें

W971GG6NB-25 8M 8BANKS 16BIT 1G Bits DDR2 SDRAM Two Data Transfers Per Clock Cycle

वर्णन

परिचालन तापमान:	0℃~+85℃	ऑपरेटिंग वोल्टेज:	1.7V~1.9V
मेमोरी आर्किटेक्चर (प्रारूप):	डीडीआर2 एसडीआरएएम	भंडारण क्षमता:	1 जीबीटी
घड़ी की आवृत्ति (एफसी):	400 मेगाहर्ट्ज	ऑपरेटिंग करंट:	110MA
प्रमुखता देना:	DDR2 SDRAM memory chip 1G bits , 16-bit DDR2 SDRAM with 8 banks , DDR2 SDRAM two data transfers

W971GG6NB-25 8M 8BANKS 16BIT 1G Bits DDR2 SDRAM

High-performance 1G bits DDR2 SDRAM organized as 8,388,608 words × 8 banks × 16 bits, achieving transfer rates up to 1066 Mbps with two data transfers per clock cycle.

Product Overview

The W971GG6NB is a high-speed DDR2 SDRAM designed for various applications. This -25 grade part is compliant with DDR2-800 (5-5-5) or DDR2-800 (6-6-6) specifications and operates at 0°C ≤ TCASE ≤ 85°C. All control and address inputs synchronize with externally supplied differential clocks, while I/Os synchronize with single-ended DQS or differential DQS-DQS pairs.

Key Features

Power Supply: VDD, VDDQ = 1.8 V ± 0.1 V
Double Data Rate architecture: two data transfers per clock cycle
CAS Latency: 3, 4, 5, 6 and 7
Burst Length: 4 and 8
Bi-directional, differential data strobes (DQS and DQS)
DLL aligns DQ and DQS transitions with clock
Differential clock inputs (CLK and CLK)
Data masks (DM) for write data
Posted CAS programmable additive latency support
Off-Chip-Driver impedance adjustment and On-Die-Termination
Auto-precharge operation for read and write bursts
Auto Refresh and Self Refresh modes
Interface: SSTL_18

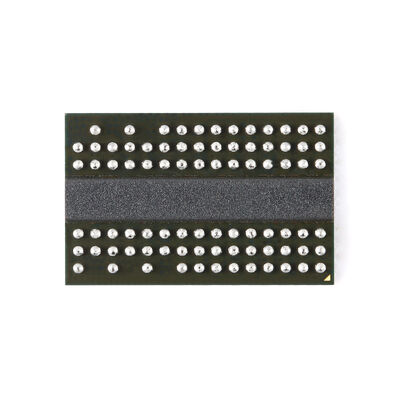

VFBGA 84 Ball packaging (8x12.5 mm², 1.0 mm thickness)
Lead-free materials, RoHS compliant

Part Number Specifications

Part Number	Speed Grade	Operating Temperature
W971GG6NB-18	DDR2-1066 (6-6-6)	0°C ≤ TCASE ≤ 85°C
W971GG6NB18I	DDR2-1066 (6-6-6)	-40°C ≤ TCASE ≤ 95°C
W971GG6NB18J	DDR2-1066 (6-6-6)	-40°C ≤ TCASE ≤ 105°C
W971GG6NB-25	DDR2-800 (5-5-5) or DDR2-800 (6-6-6)	0°C ≤ TCASE ≤ 85°C
W971GG6NB25I	DDR2-800 (5-5-5) or DDR2-800 (6-6-6)	-40°C ≤ TCASE ≤ 95°C
W971GG6NB25J	DDR2-800 (5-5-5) or DDR2-800 (6-6-6)	-40°C ≤ TCASE ≤ 105°C
W971GG6NB-3	DDR2-667 (5-5-5)	0°C ≤ TCASE ≤ 85°C

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
