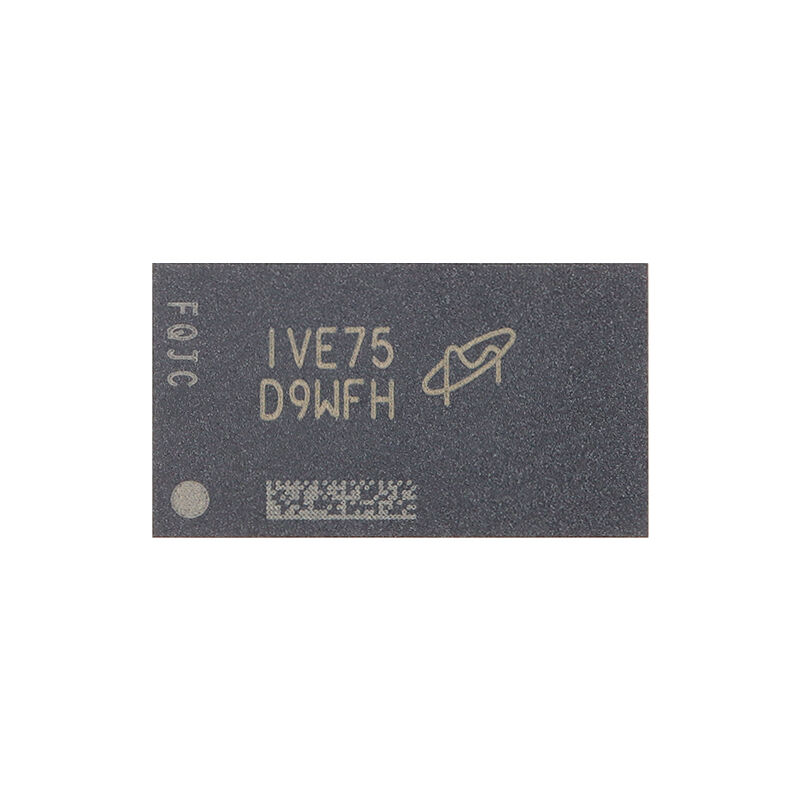

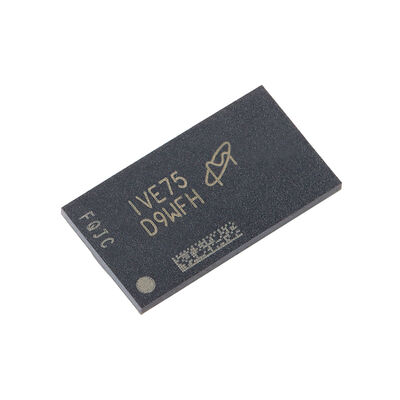

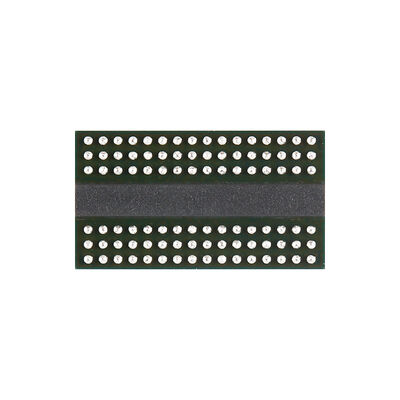

MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM

Large Image : MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM

Product Details:

Place of Origin:	CN
Brand Name:	micron
Certification:	rohs
Model Number:	MT40A512M16LY-075:E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	consult with

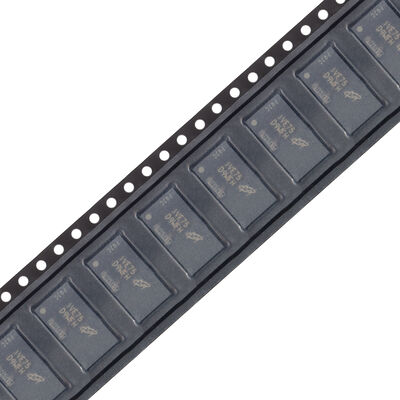

Packaging Details:	T/R
Delivery Time:	5-8days
Payment Terms:	T/T,Western Union
Supply Ability:	100000

Contact Now Chat Now

MT40A512M16LY-075:E 8Gb: X4 X8 X16 Parallel Interface DDR4 SDRAM

Description

Operating Temperature:	0℃~+95℃	Operating Voltage:	1.14V~1.26V
Memory Architecture (format):	DDR SDRAM	Storage Capadity:	8Gbit
Clock Frequency (fc):	1.33GHz	Operating Current:	-
Highlight:	8Gb DDR4 SDRAM memory chip , X16 parallel interface DRAM , MT40A512M16LY-075:E DDR4 SDRAM

MT40A512M16LY-075:E 8Gb DDR4 SDRAM

High-performance 8Gb DDR4 SDRAM with X4, X8, and X16 parallel interfaces, designed for demanding industrial and computing applications.

Product Features

Operating voltage: VDD = VDDQ = 1.2V ±60mV
VPP = 2.5V, –125mV, +250mV
On-die, internal, adjustable VREFDQ generation
1.2V pseudo open-drain I/O
Refresh time of 8192-cycle at TC temperature range
16 internal banks (x4, x8): 4 groups of 4 banks each
8 internal banks (x16): 2 groups of 4 banks each
8n-bit prefetch architecture
Programmable data strobe preambles and preamble training
Command/Address latency (CAL)
Multipurpose register READ and WRITE capability
Write leveling and output driver calibration
Self refresh mode with low-power auto self refresh (LPASR)
Temperature controlled refresh (TCR)
Fine granularity refresh and self refresh abort
Maximum power saving mode
Nominal, park, and dynamic on-die termination (ODT)
Data bus inversion (DBI) for data bus
Command/Address (CA) parity
Databus write cyclic redundancy check (CRC)
Per-DRAM addressability and connectivity test
JEDEC JESD-79-4 compliant
sPPR and hPPR capability

Speed Grade Specifications

Speed Grade	Data Rate (MT/s)	Target CL-nRCD-nRP	tAA (ns)	tRCD (ns)	tRP (ns)
-062Y	3200	22-22-22	13.75 (13.32)	13.75 (13.32)	13.75 (13.32)
-062E	3200	22-22-22	13.75	13.75	13.75
-068	2933	21-21-21	14.32 (13.75)	14.32 (13.75)	14.32 (13.75)
