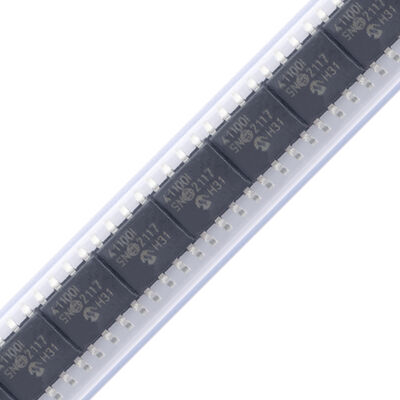

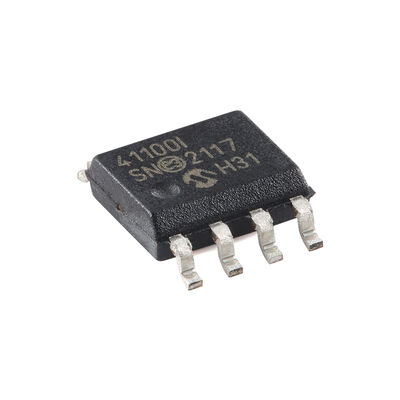

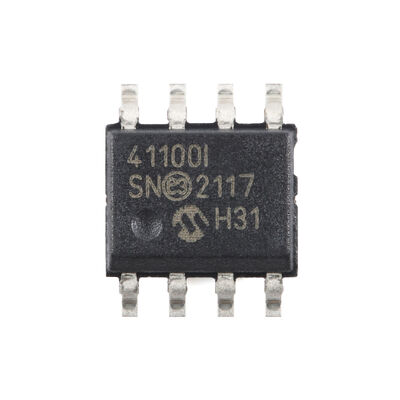

MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface

MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface
MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface

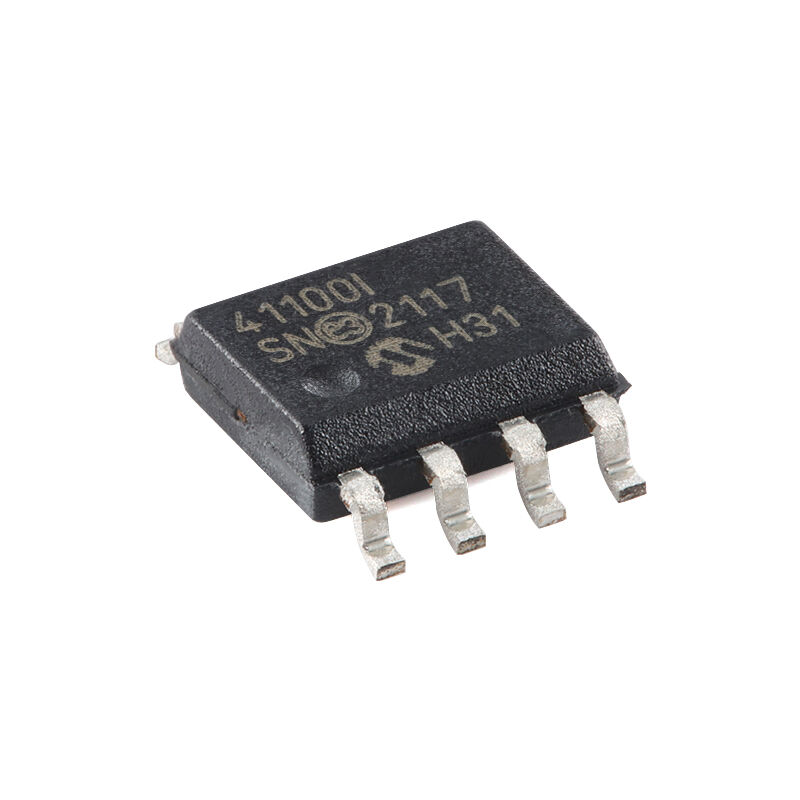

Large Image :  MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface

Product Details:
Place of Origin: CN
Brand Name: MICROCHIP
Certification: rohs
Model Number: MCP41100-I/SN
Document: C2666606_C5E8E7A5F3891B321C...7B.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: consult with
Packaging Details: T/R
Delivery Time: 5-8days
Payment Terms: T/T,Western Union
Supply Ability: 100000
Contact Now Chat Now

MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface

Description
Product Category:: Digital To Analog Converters - ADC Number Of Outputs:: 1
Operating Supply Voltage:: 2.7V~5.5V Minimum Operating Temperature:: - 40 °C
Maximum Operating Temperature:: + 85 °C Package | Pins: SOIC-8
Highlight:

SPI digital potentiometer MCP41100

,

dual digital potentiometer with warranty

,

MCP41100-I/SN DAC digital potentiometer

MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface
The MCP41100-I/SN is a high-performance digital potentiometer featuring SPI interface compatibility, designed for precision electronic applications requiring reliable digital resistance control.
Key Features
  • 256 taps for each potentiometer
  • Available in 10 kΩ, 50 kΩ, and 100 kΩ potentiometer values
  • Single and dual versions available
  • SPI™ serial interface (mode 0,0 and 1,1)
  • ±1 LSB maximum INL & DNL
  • Low power CMOS technology
  • 1 µA maximum supply current in static operation
  • Multiple devices can be daisy-chained together (MCP42XXX only)
  • Shutdown feature opens circuits of all resistors for maximum power savings
  • Hardware shutdown pin available on MCP42XXX only
  • Single supply operation (2.7V - 5.5V)
  • Industrial temperature range: -40°C to +85°C
  • Extended temperature range: -40°C to +125°C
Pin Functions
Pin # Name Function
1 CS Chip Select
2 SCK Serial Clock
3 SI Serial Data Input
4 VSS Ground
5 PB1 Terminal B Connection For Pot 1
6 PW1 Wiper Connection For Pot 1
7 PA1 Terminal A Connection For Pot 1
8 PA0 Terminal A Connection For Pot 0
9 PW0 Wiper Connection For Pot 0
10 PB0 Terminal B Connection For Pot 0
11 RS Reset Input
12 SHDN Shutdown Input
13 SO Data Out for Daisy-Chaining
14 VDD Power

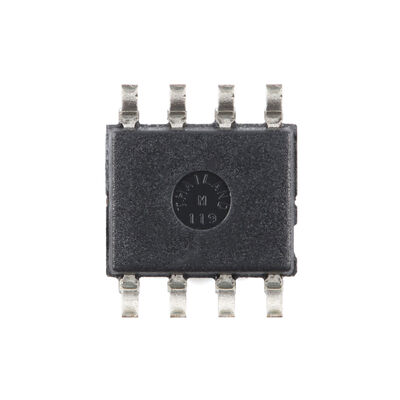

MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface 0 MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface 1 MCP41100-I/SN Single/Dual Digital Potentiometer With SPI™ Interface 2
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
