Static 8Mbit Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT

I'm Online Chat Now

Static 8Mbit Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT

Static 8Mbit  Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT
Static 8Mbit  Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT Static 8Mbit  Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT Static 8Mbit  Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT

Large Image :  Static 8Mbit Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT

Product Details:
Place of Origin: TWN
Brand Name: Infineon
Certification: ROHS
Model Number: CY7C1051DV33-10ZSXIT
Document: C475876_C781020683534F8E708...F5.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CONSULT WITH
Packaging Details: T/R
Delivery Time: 5-8DAY
Payment Terms: Western Union,T/T
Supply Ability: 10000
Contact Now Chat Now

Static 8Mbit Chip Sram COMS Random Access Memory CY7C1051DV33-10ZSXIT

Description
Manufacturer:: Infineon Product Category:: SRAM
Memory Size:: 8 Mbit Organization:: 512 K X 16
Package / Case:: TSOP-44 Moisture Sensitive:: Yes
Series:: CY7C1051DV33 Factory Pack Quantity:: 1000
Highlight:

Static 8Mbit chip sram

,

512k chip sram

,

CY7C1051DV33-10ZSXIT

SRAM 8Mbit Static RAM High-performance COMS Static Random Access Memory CY7C1051DV33-10ZSXIT
Product Attributes
Manufacturer: Infineon
Product Category: SRAM
Memory Size: 8 Mbit
Organization: 512 k x 16
Package / Case: TSOP-44
Moisture Sensitive: Yes
Series: CY7C1051DV33
Factory Pack Quantity: 1000
Product Description

The CY7C1051DV33 is a high performance CMOS Static RAM organized as 512 K words by 16-bits.

To write to the device, take Chip Enable (CE) and Write Enable (WE) inputs LOW. If Byte LOW Enable (BLE) is LOW, then data from I/O pins (I/O0-I/O7), is written into the location specified on the address pins (A0-A18). If Byte HIGH Enable (BHE) is LOW, then data from I/O pins (I/O8-I/O15) is written into the location specified on the address pins (A0-A18).

To read from the device, take Chip Enable (CE) and Output Enable (OE) LOW while forcing the Write Enable (WE) HIGH. If Byte LOW Enable (BLE) is LOW, then data from the memory location specified by the address pins appears on I/O0-I/O7. If Byte HIGH Enable (BHE) is LOW, then data from memory appears on I/O8 to I/O15.

The input/output pins (I/O0-I/O15) are placed in a high-impedance state when the device is deselected (CE HIGH), the outputs are disabled (OE HIGH), the BHE and BLE are disabled (BHE, BLE HIGH), or a write operation (CE LOW, and WE LOW) is in progress.

The CY7C1051DV33 is available in a 44-pin TSOP II package with center power and ground (revolutionary) pinout and a 48-ball FBGA package.

Key Features
  • Temperature ranges: -40°C to 85°C
  • High speed: tAA = 10 ns
  • Low active power: ICC = 110 mA at f = 100 MHz
  • Low CMOS standby power: ISB2 = 20 mA
  • 2.0-V data retention
  • Automatic power-down when deselected
  • TTL-compatible inputs and outputs
  • Easy memory expansion with CE and OE features
  • Available in Pb-free 48-ball FBGA and 44-pin TSOP II packages

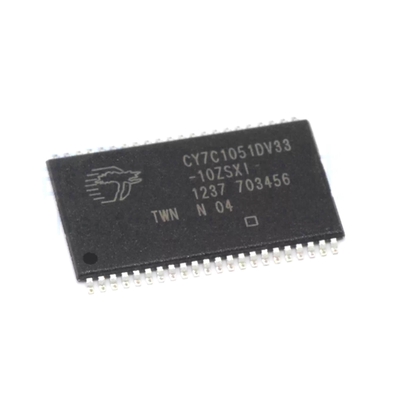

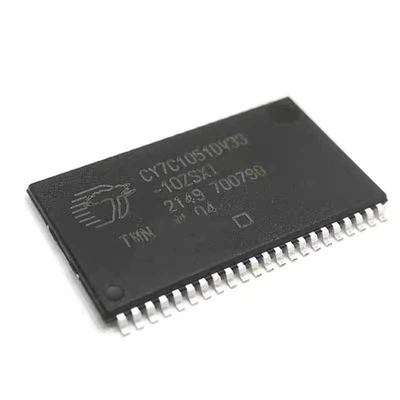

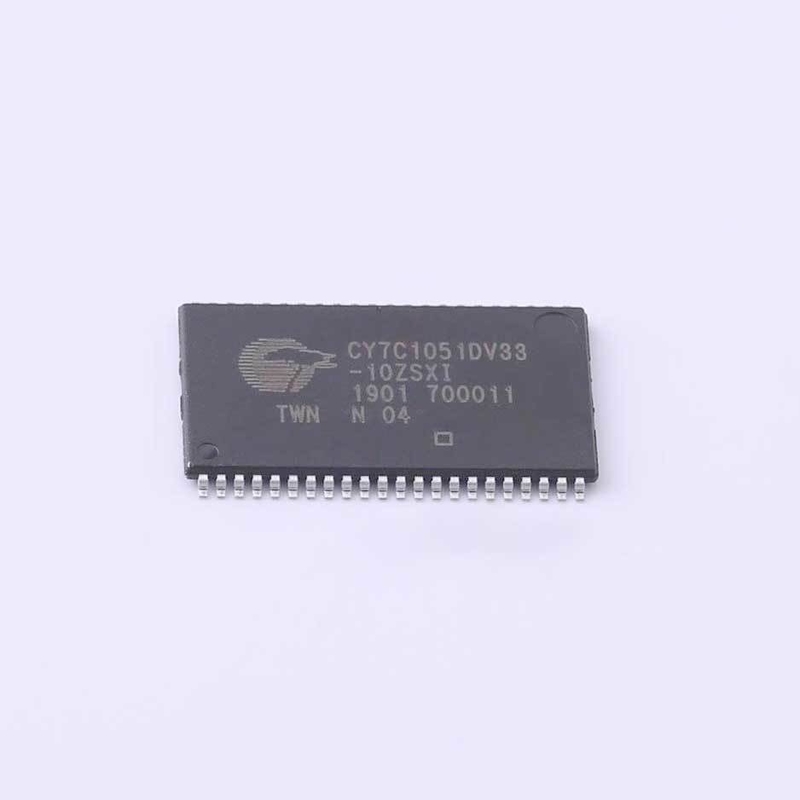

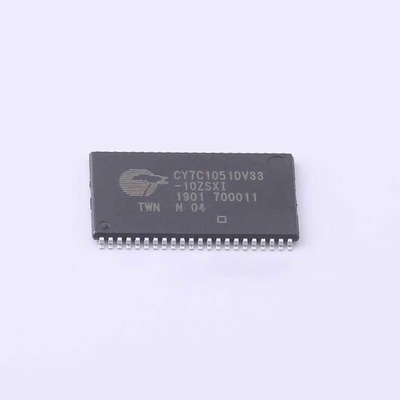

Product Images
